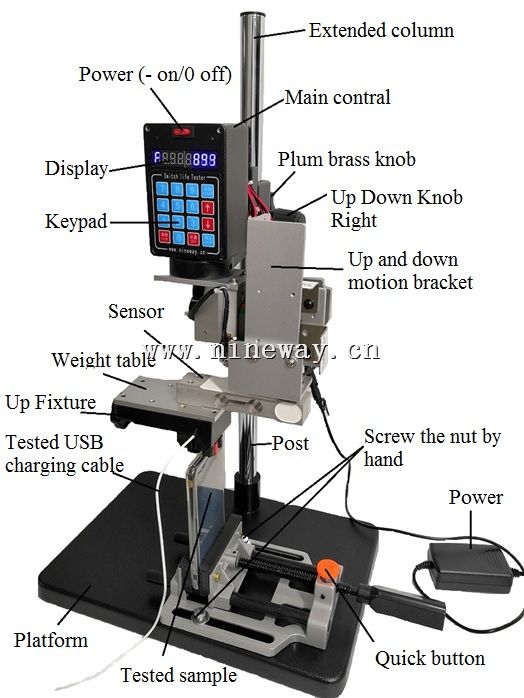

NWT-1501Plug Pull LifeTester
Ⅰ. Product Introduction
NWT-1501 plug-pull life testeris a multifunctional small plug-in force and plug-in life tester, which cansimulate the plug-in and plug-out operation of connectors and sockets.
Ⅱ. Specification
2.1Push-pull span is 1--80mm
2.2Max testing speed:250px/second (include speed 2-9 can be set to adjusttesting speed)
2.3 Maximuminsertion and extract force is 10kg
2.4 Plugand pull force measuring accuracy 1 gram
2.5 Measurablenumber of single operation: 20million times
2.6 Overloadprotection force 20g-9999g
2.7 Sampleand operator protection can be automatically protected by setting overloadprotection force
2.8Driving style: Stepping motor
2.9 Machine Dimension: 380mm×260mm×400mm Maximum
2.10 Weight: 6kg
2.11 Power:12V DC [1 adapter: input 100-220V/50/60HZ, output 12V/2A]
2.12 Noise:35db
2.13 Power Consumption: 25W
