Ⅰ Product Introduction

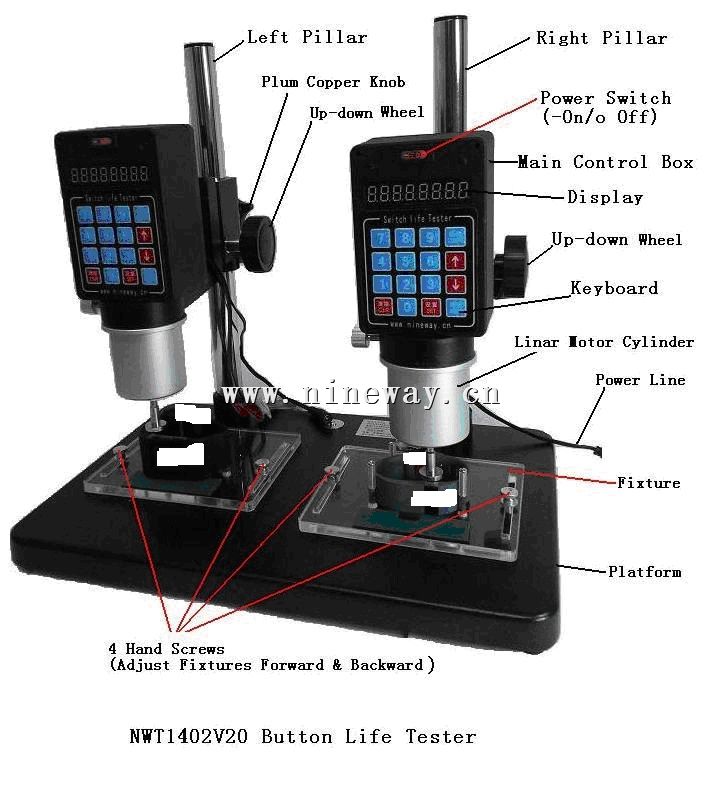

NWT1402V20 ismade up by install 2 NWT1001V20 into one platform with 2 fixtures installing 2tested samples.
NWT1001V20is designed for user who requests accurate pressing force setting.
Ⅱ Specification
2 2.1 Movabledistance of testing head: 7mm, fixed hitting span 4 mm, fine tuning updown range by wheel is 40mm
2 2.2 Testingspeed: 10000times/hour
2 2.3 Maximummeasurable number of single operation: 20million times
2 2.4 Adjustable height of testing head: 0~200mm
2 2.5 Testing force: 500-800g (Testing force forcustom-made one:0~800g),
1st gear: 550g~800g, 2nd gear:350g~450g, 3rd gear: 150g~250g, 4th gear 0-800g User canset any value between 0 to 1000g.
2 2.6 Driving style: Stepper motor
2 2.7 Machine Dimension: 340mm×260mm×300mm
2 2.8 Weight: 8kg
2 2.9 Power: 12V DC [adapter: input 220V/50HZ,output 12V/2A]
2 2.10 Noise: 35Db
2 2.11Power Consumption: 10W
