Ⅰ. Product Introduction

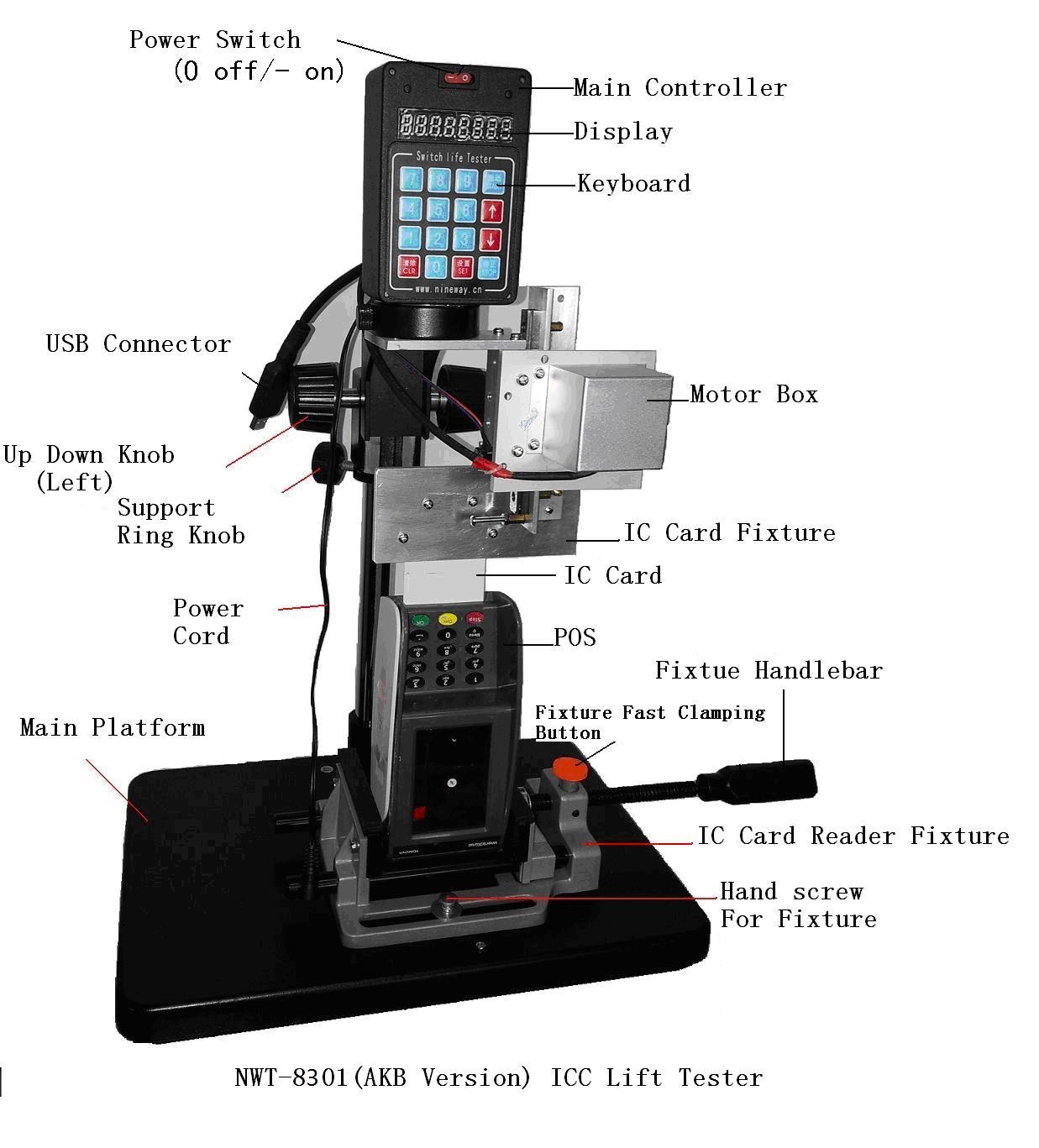

NWT-8301 (AKB Version) ICC Life Tester using stardardNWT-8301 tester to be customized for AKB company as a ICC life tester.Thetester is a one-working station Life testing machine, which is mainly used totest IC card and IC card reader life. Maximum insertion and extraction force isless than 6 kg.
It is usually to work as a standalone machine , and youcan also be link with computer with USB port to do complete more complextesting task.
In the case of IC reader is too high to thelimitation of standard version machine, AKB version machine uses a longerupright post which client need to install it with the tool we supply verycarefully.
Ⅱ. Specification
2 2.0 maximuminsertion and extract force is 6kg
2 2.1 push-pull span is 1--55mm
2 2.2 Max testing speed:250px/second (include speed 2-9can be set to adjust testing speed)
2 2.3 Maximum measurable number of singleoperation: 20million times
2 2.4 Driving style: Stepping motor
2 2.5 Machine Dimension: 380mm×260mm×400mm
2 2.6 Weight: 6kg
2 2.7 Power: 12V DC [ 1 adapter: input 100-220V/50/60HZ,output 12V/2A]
2 2.8 Noise: 35db
2 2.9 Power Consumption: 25W
